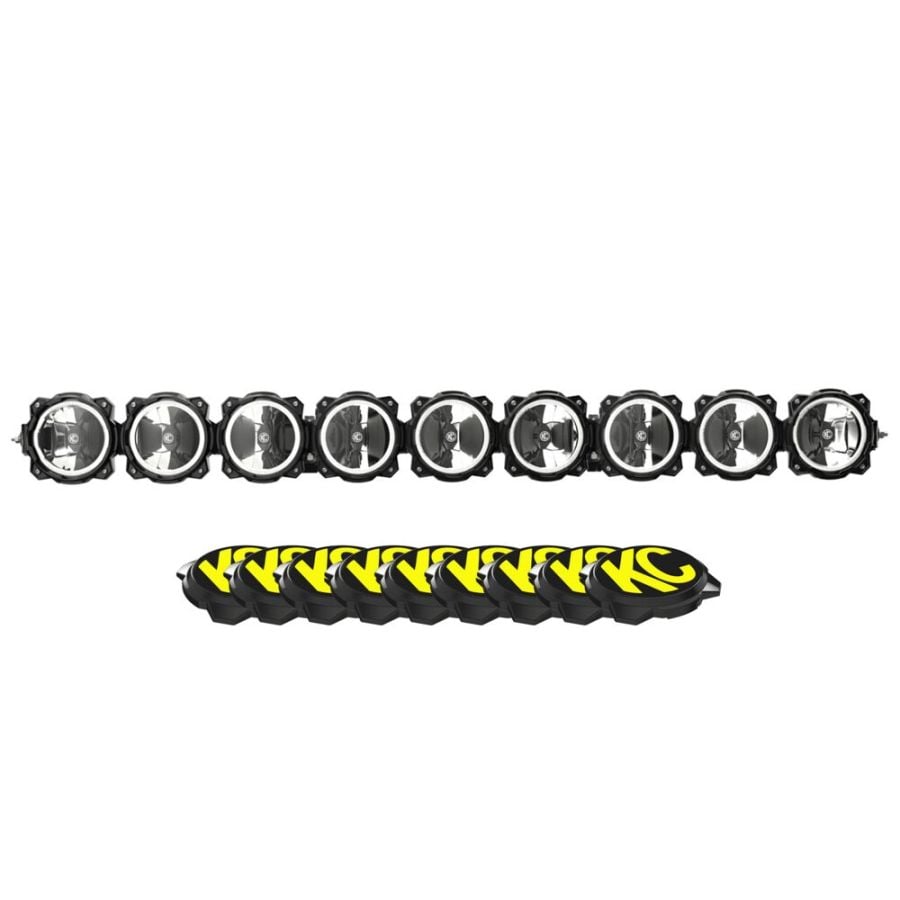

57" Gravity® Pro6 LED Light Bar - 9-Light
The Pro6 is the original modular LED light bar. This 57" overhead bar delivers precise and efficient long-distance performance, a timeless look, and combo beam pattern in a race-tested, innovative design.
FEATURES
- Powered by patented and powerful Gravity® LED G6 optical inserts
- Patented Infinity Ring™ system enables the conversion of the Pro6 from straight to radius configurations in seconds
- Signature KC modular design is expandable to different widths
- High output, low amperage draw
- Includes Spot and Wide-40 beam pattern lights
PARTS INCLUDED
- (1) Pro6 LED 9-Light Bar
- (9) Light Covers - Black w/ Yellow KC Logo
- (1) Plug-N-Play Wiring Harness w/ 30A LED Switch
- (1) Bumpstop
- (1) Cover Removal Tool
- Complete Hardware
PERFORMANCE GRAVITY® LED OPTICS
Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of Spot and Wide-40 G6 optical inserts.
INFINITY RING™ SYSTEM
The patented Infinity Ring™ system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring.
UNIVERSAL END MOUNT SYSTEM
The Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck, or UTV.
RACE-PROVEN STRENGTH & DURABILITY
Inspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable, and scalable LED light bar design available today.
| SKU | 91315 |
|---|---|
| Weight | 30.000000 |
| Wattage Per Light | 21.36W |
| Total Wattage | 192.24W |
| Amp Draw Per Light | 1.78a |
| Total Amp Draw | 16.02a |
| Voltage | 9V-36V |
| Lumens Per Light | 2,508lm |
| Total Lumens | 22,572lm |
| Lux Per Light | 868lx (Spot) / 309lx (Wide 40) |
| Total Lux | 6,692lx |
| Candela Per Light | 86,775cd (Spot) / 30,891cd (Wide 40) |
| Total Candela | 669,207cd |
| Light Temp | 5000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Combo |
| Beam Distance | 818m |
| Light Technology | LED |
| Package Options | Includes Covers, Includes Wiring, Includes Switch |
| Mount Location | Bumper, Overhead |
| Size of Products | 57" |
| Material | Aluminum Alloy |
| Product Finish | Black |
| Included Components | 57" 9-Light Gravity® LED Pro6 Light Bar, 9 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch |
| Color | Black |
| Product Dimensions | W: 56.625 " x H: 6.06 " x D: 3.33 " |
| Tag Line | Modular. Linkable. Curvable. |
| UPC | 084709913151 |
| IP Rating | IP68 |
| Condition | New |
