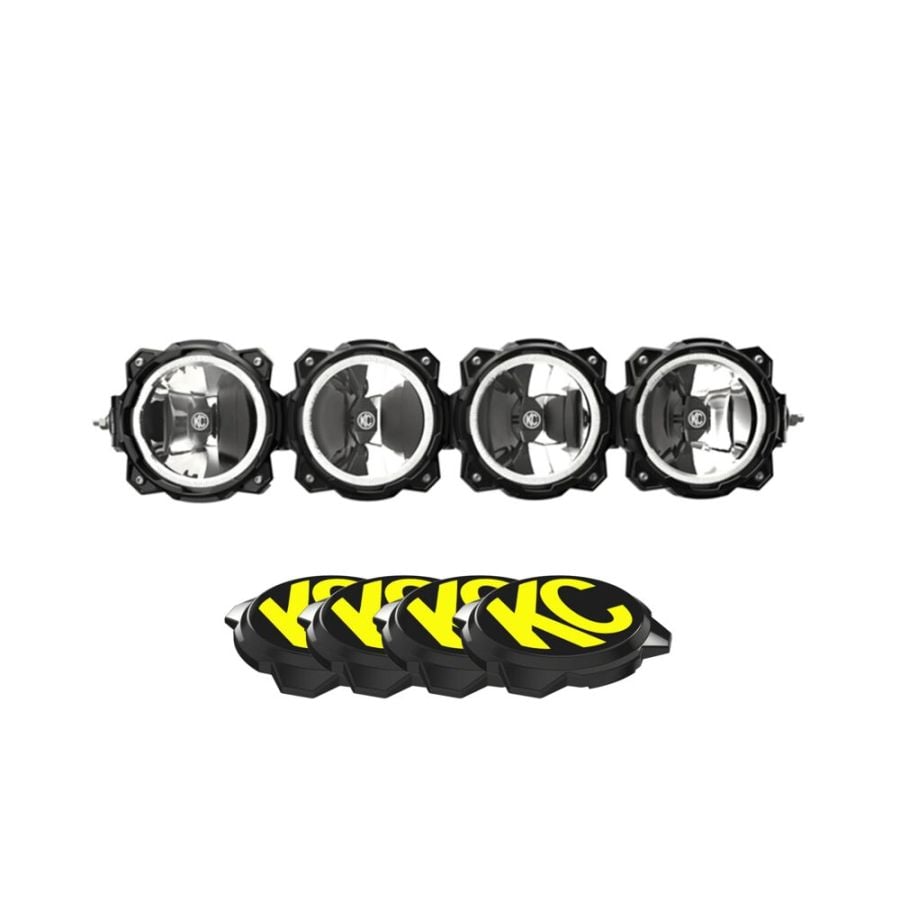

26" Gravity® Pro6 LED Light Bar - 4-Light
SKU
91319
Availability: In stock
The Gravity® LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring™ system featuring radius to straight adjustability, modular beam patterns, and expandable widths.
FEATURES
-Powered by Gravity® LED G6 optical inserts – efficient, powerful, patented
-Patented Infinity Ring™ system enables the conversion of the Pro6 from straight to radius format in seconds
-Signature KC modular design is expandable to different widths
-Extremely high output with very low amperage draw
-Includes Spot and Wide-40 beam pattern lights
PARTS INCLUDED
-(1) Pro6 LED Light Bar
-(4) Black light covers with KC logo
-Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch
PERFORMANCE GRAVITY® LED OPTICS
Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of Spot and Wide-40 G6 optical inserts.
INFINITY RING™ SYSTEM
The patented Infinity Ring™ system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring.
UNIVERSAL END MOUNT SYSTEM
The Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck, or UTV.
RACE-PROVEN STRENGTH & DURABILITY
Inspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable, and scalable light bar design available today.
-Powered by Gravity® LED G6 optical inserts – efficient, powerful, patented
-Patented Infinity Ring™ system enables the conversion of the Pro6 from straight to radius format in seconds
-Signature KC modular design is expandable to different widths
-Extremely high output with very low amperage draw
-Includes Spot and Wide-40 beam pattern lights
PARTS INCLUDED
-(1) Pro6 LED Light Bar
-(4) Black light covers with KC logo
-Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch
PERFORMANCE GRAVITY® LED OPTICS
Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of Spot and Wide-40 G6 optical inserts.
INFINITY RING™ SYSTEM
The patented Infinity Ring™ system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring.
UNIVERSAL END MOUNT SYSTEM
The Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck, or UTV.
RACE-PROVEN STRENGTH & DURABILITY
Inspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable, and scalable light bar design available today.
| SKU | 91319 |
|---|---|
| Weight | 16.000000 |
| Wattage Per Light | 21.36W |
| Total Wattage | 85.44W |
| Amp Draw Per Light | 1.78a |
| Total Amp Draw | 7.12a |
| Voltage | 9V-36V |
| Lumens Per Light | 2,508lm |
| Total Lumens | 10,032lm |
| Lux Per Light | 2,886lx (Spot) / 1,550lx (Wide 40) |
| Total Lux | 2,353lx |
| Candela Per Light | 288,500cd (Spot) / 155,000cd (Wide 40) |
| Total Candela | 235,332cd |
| Light Temp | 5000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Combo |
| Beam Distance | 485m |
| Light Technology | LED |
| Package Options | Includes Covers, Includes Wiring, Includes Switch |
| Mount Location | Bumper, Overhead |
| Size of Products | 26" |
| Material | Aluminum Alloy |
| Product Finish | Black |
| Included Components | 26" 4-Light Gravity® LED Pro6 Light Bar, 4 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch |
| Color | Black |
| Product Dimensions | W: 26.575 " x H: 6.06 " x D: 3.33 " |
| Tag Line | Modular. Linkable. Curvable. |
| UPC | 084709913199 |
| IP Rating | IP68 |
| Condition | New |
