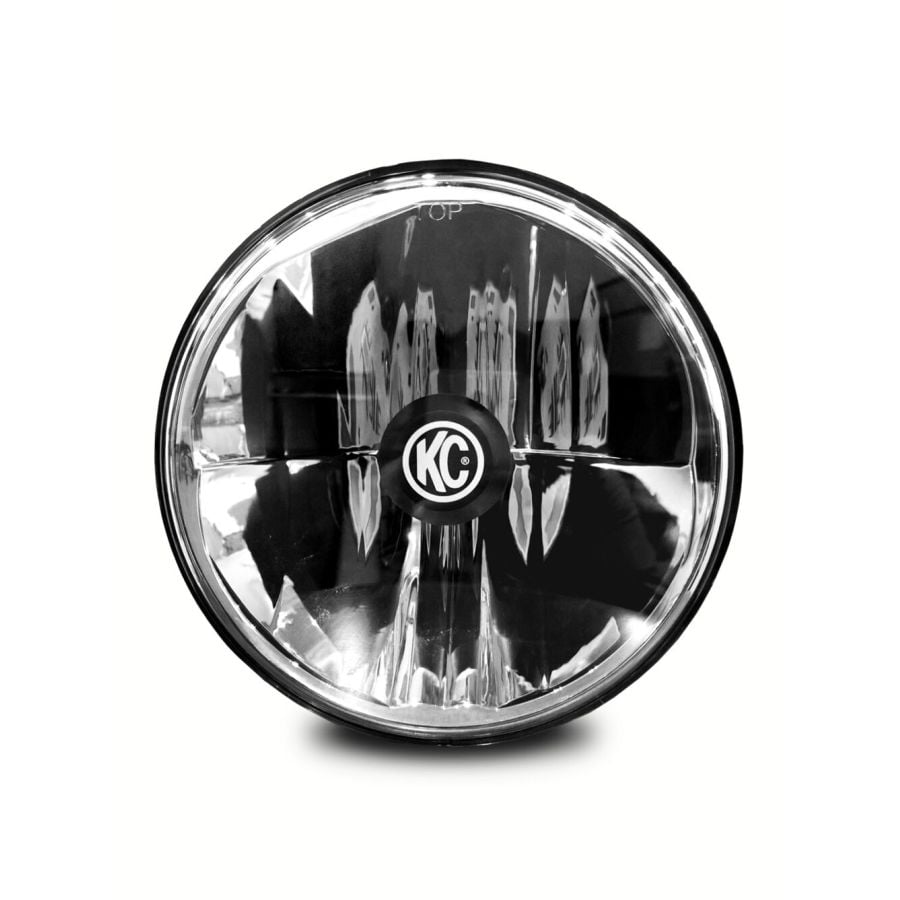

7" Gravity® LED DOT Headlight - Driving Beam - Single - 07-18 Jeep JK
SKU
4235
Availability: In stock
KC HiLiTES Gravity LED 7" Jeep JK Headlight features bright CREE LEDs for DOT compliant Low/High beam for 07-18 Jeep JKs. Die-cast aluminum housing using KC Gravity Reflective Diode with polycarbonate lens for optical clarity and output.
FEATURES
-40W Gravity® LED 7" Headlight
-Hard Coated Polycarbonate Lens
-Full Plug-n-Play for 07-18 Jeep JK Wrangler
-Precision Die-Cast Aluminum Housing
-KC Engineered Polished Reflector Optics
-DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
-Compliance: SAE J851 & ECE-R112
-Lux @ 10 Meters: Low- 415 lx, High- 775 lx
-Candela: Low- 41,500 cd, High- 77,500 cd
-Beam Distance: Low- 407m, High- 557m
SPECIFICATIONS (PER LIGHT)
-Wattage: Low- 18W, High- 22W
-LED Bulb: CREE XHP35 HI and Nichia
-Color Temperature: 5000K
-Amp Draw: 1.88A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W - 6.96" x D - 3.72"
PARTS INCLUDED
-Plug and Play H13 Connector for Jeep JK
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.
DESIGNED FOR DURABILITY
Surrounding our Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
-40W Gravity® LED 7" Headlight
-Hard Coated Polycarbonate Lens
-Full Plug-n-Play for 07-18 Jeep JK Wrangler
-Precision Die-Cast Aluminum Housing
-KC Engineered Polished Reflector Optics
-DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
-Compliance: SAE J851 & ECE-R112
-Lux @ 10 Meters: Low- 415 lx, High- 775 lx
-Candela: Low- 41,500 cd, High- 77,500 cd
-Beam Distance: Low- 407m, High- 557m
SPECIFICATIONS (PER LIGHT)
-Wattage: Low- 18W, High- 22W
-LED Bulb: CREE XHP35 HI and Nichia
-Color Temperature: 5000K
-Amp Draw: 1.88A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W - 6.96" x D - 3.72"
PARTS INCLUDED
-Plug and Play H13 Connector for Jeep JK
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.
DESIGNED FOR DURABILITY
Surrounding our Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
| SKU | 4235 |
|---|---|
| Weight | 3.000000 |
| Light Technology | LED |
| Location on Vehicle | Headlight |
| Candela | Low- 41,500, High- 77,500 cd |
| Lumens | 1260 lm |
| Lux | Low- 415 lx, High- 775 lx |
| Beam Distance | 557 m |
| Wattage Per Light | 40W |
| Total Wattage | 40W |
| Voltage | 9V-18V |
| Amp Draw | 3.3 a |
| Beam Pattern | Driving |
| Light Temperature | 5000K |
| DOT Compliant | Yes |
| SAE/ECE | Yes |
| Lens Color | Clear |
| Light Color | White |
| Product Dimensions | W - 6.96" x D - 3.72" |
| Type | Headlight |
| Material | Aluminum Alloy |
| Finish | Black |
| Location on Vehicle | Front / Grille |
| UPC | 084709042356 |
| In The Box | Gravity® LED 7" DOT Jeep JK 2007-2018 Headlight |
| Prop 65 | No |
| Size | 7" |
