Gravity® LED G6 Optical Insert Single
SKU
6-gravity-drop-in
Availability: In stock

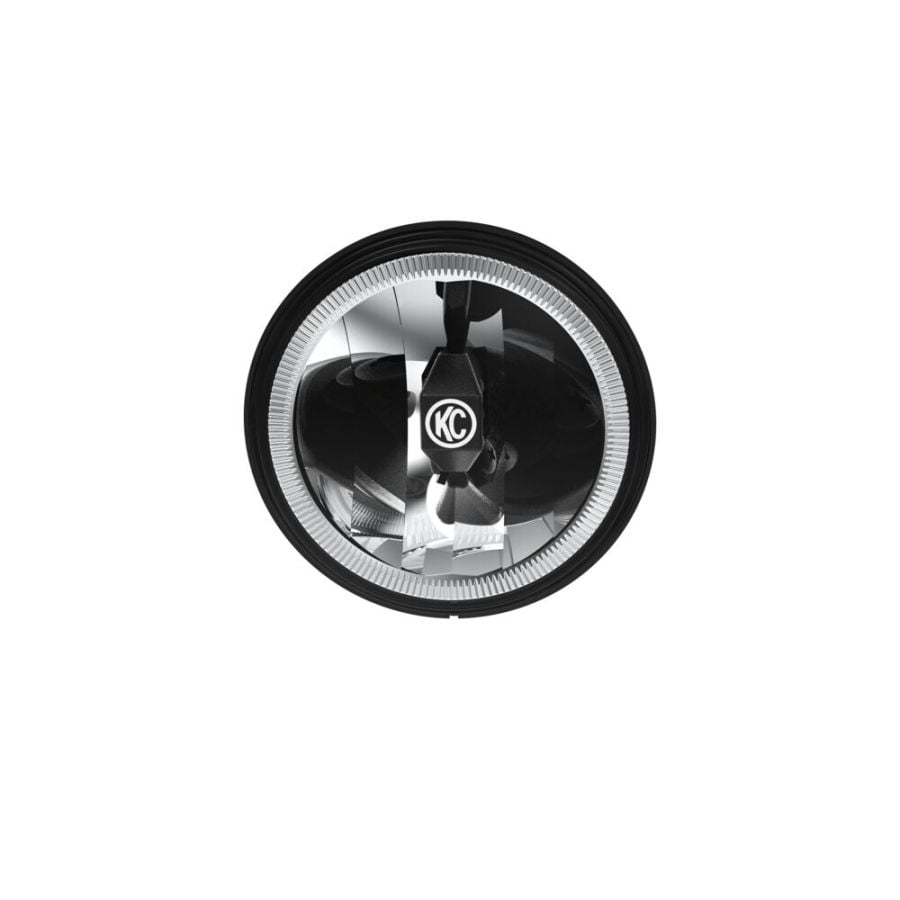

KC Hilites 6" Gravity LED Insert is used as a replacement or upgrade to existing 6" Halogen Daylighter models, featuring efficient 5000K CREE LED bulbs in a street legal driving beam pattern, for maximum coverage.
FEATURES
-20W Gravity® LED G6 Optical Inserts
-Aluminum Housing
-Hard Coated Polycarbonate Lens
-Driving Beam Pattern
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Driving- 2,300 lm
-Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
-Lux @10 Meters: Driving- 1,130 lx
-Candela: Driving- 131,000 cd
-Beam Distance (Meters): Driving- 724m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.67A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 1,310 lx @ 10m, with a Driving Beam distance of 724 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Driving Beam- Greatly improve peripheral lighting with a wider beam pattern for increased road coverage while reducing glare.
UPGRADE YOUR HALOGENS TO LED
KC's Gravity® G6 LED optical inserts allow you to upgrade older KC 6" Halogen Daylighter, as well as custom 6" openings with the latest LED technology.
STRENGTH & DURABILITY
With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self-contained LED light for maximum reliability and durability.
-20W Gravity® LED G6 Optical Inserts
-Aluminum Housing
-Hard Coated Polycarbonate Lens
-Driving Beam Pattern
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Driving- 2,300 lm
-Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
-Lux @10 Meters: Driving- 1,130 lx
-Candela: Driving- 131,000 cd
-Beam Distance (Meters): Driving- 724m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.67A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 1,310 lx @ 10m, with a Driving Beam distance of 724 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Driving Beam- Greatly improve peripheral lighting with a wider beam pattern for increased road coverage while reducing glare.
UPGRADE YOUR HALOGENS TO LED
KC's Gravity® G6 LED optical inserts allow you to upgrade older KC 6" Halogen Daylighter, as well as custom 6" openings with the latest LED technology.
STRENGTH & DURABILITY
With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self-contained LED light for maximum reliability and durability.
| SKU | 42053 |
|---|---|
| Weight | 1.600000 |
| Compliance DOT/SAE/ECE | SAE J581, ECE R112 (Driving) |
| Wattage Per Light | 20W |
| Total Wattage | 20W |
| Amp Draw Per Light | 1.67 a |
| Voltage | 9V-32V |
| Lumens Per Light | 2,300 lm |
| Lux Per Light | 1,130 lx |
| Candela Per Light | 131,000 cd |
| Light Temp | 5000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Driving |
| Beam Distance | 724 m |
| Light Technology | LED |
| Mount Location | A-Pillar / Ditch, Bumper, Overhead |
| Size of Products | 6" |
| Product Finish | Black |
| Included Components | 20W Gravity® LED SAE/ECE Driving Beam G6 Optical Insert |
| Color | Black |
| Product Dimensions | W: 5.68 " x H: 5.66 " x D: 3.32 " |
| UPC | 084709420536 |
| IP Rating | IP68 |
