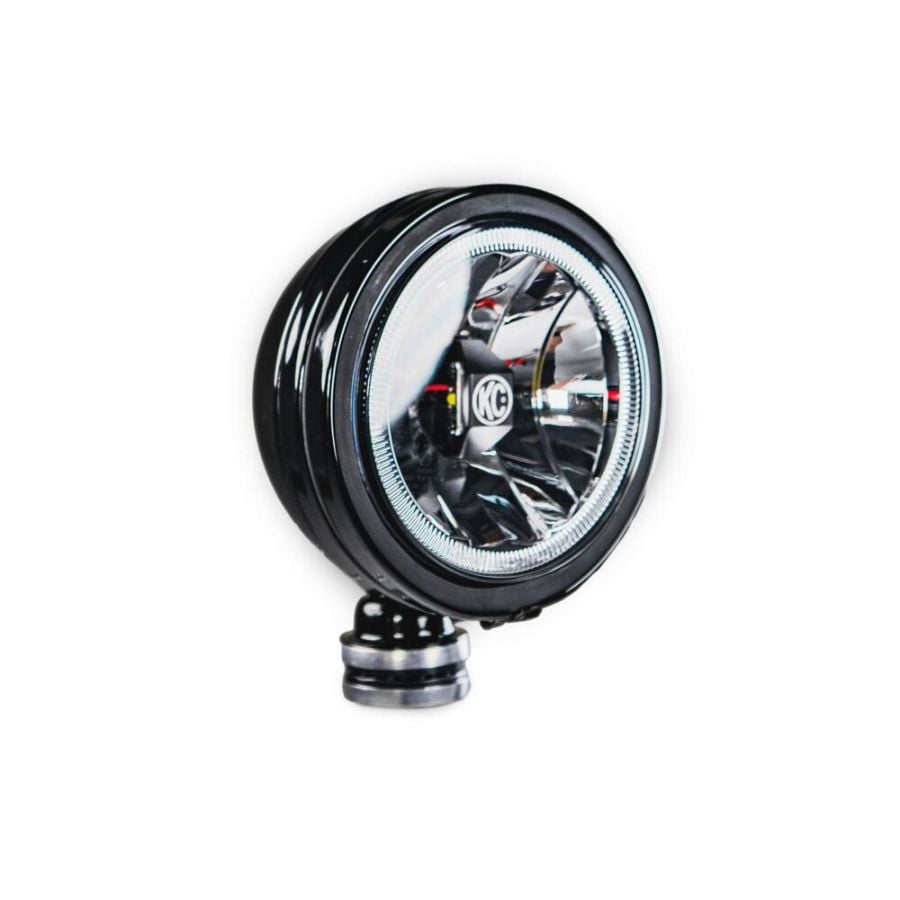

6" Daylighter with Gravity® LED G6 Single

SKU
gravity-single
Availability: In stock

$239.99

Harness & Wiring

Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

KC Hilites 6" Gravity LED Daylighter feature bright CREE LEDs in a SAE legal driving beam pattern. Black steel housing and polycarbonate lens with flexible base for accurate aiming.
FEATURES
-20W Gravity® LED G6 optical insert
-Black Powder Coated Steel housing
-Hard Coated Polycarbonate Lens
-Driving Beam Pattern

LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 2,300 lm
-Lux @ 10 Meters: 1,310 lx
-Candela: 131,000 cd
-Beam Distance (Meters): 724m

SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"

GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY
Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES
Different beam patterns offer advantages depending on your specific lighting needs.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.

RACE PROVEN STRENGTH & DURABILITY
The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
More Information
SKU 1653
Weight 3.100000
Candela 131,000 cd
Lumens 2,300 lm
Lux 1,310 lx
Beam Distance 724 m
Wattage Per Light 20W
Total Wattage 20W
Voltage 9V-32V
Amp Draw 1.67 a
Beam Pattern Driving
Light Temperature 5000K
DOT Compliant No
SAE/ECE Yes
Lens Color Clear
Light Color White
Product Dimensions W - 6.22" x H - 8.42" x D - 5.38"
Type Daylighter
Family / Series Daylighter, Gravity LED
Material Stainless Steel
Finish Black
Mount Location A-Pillar / Ditch / Windshield, Bumper, Overhead / Roof, Rear / Trunk
UPC 084709016531
Color Black
In The Box Gravity™ LED Daylighter(Black Steel) SAE/ECE Driving Beam Light, 6" Protective KC Daylighter light Guard, Mounting Hardware
IP rating IP67
Prop 65 No
Size 6"
Product Data Sheets
pdf

1651 - 6" Daylighter Gravity® LED - Spot Beam - Single

1653 - 6" Daylighter Gravity® LED SAE - Driving Beam - Single

File Size: 611.5 KB
pdf

1651 - 6" Daylighter Gravity® LED - Spot Beam - Single

1653 - 6" Daylighter Gravity® LED SAE - Driving Beam - Single

File Size: 608.8 KB
Installation Guides
pdf

1651 - 6" Daylighter Gravity® LED - Spot Beam - Single

1653 - 6" Daylighter Gravity® LED SAE - Driving Beam - Single

File Size: 166.8 KB
pdf

1651 - 6" Daylighter Gravity® LED - Spot Beam - Single

1653 - 6" Daylighter Gravity® LED SAE - Driving Beam - Single

File Size: 2.7 MB
