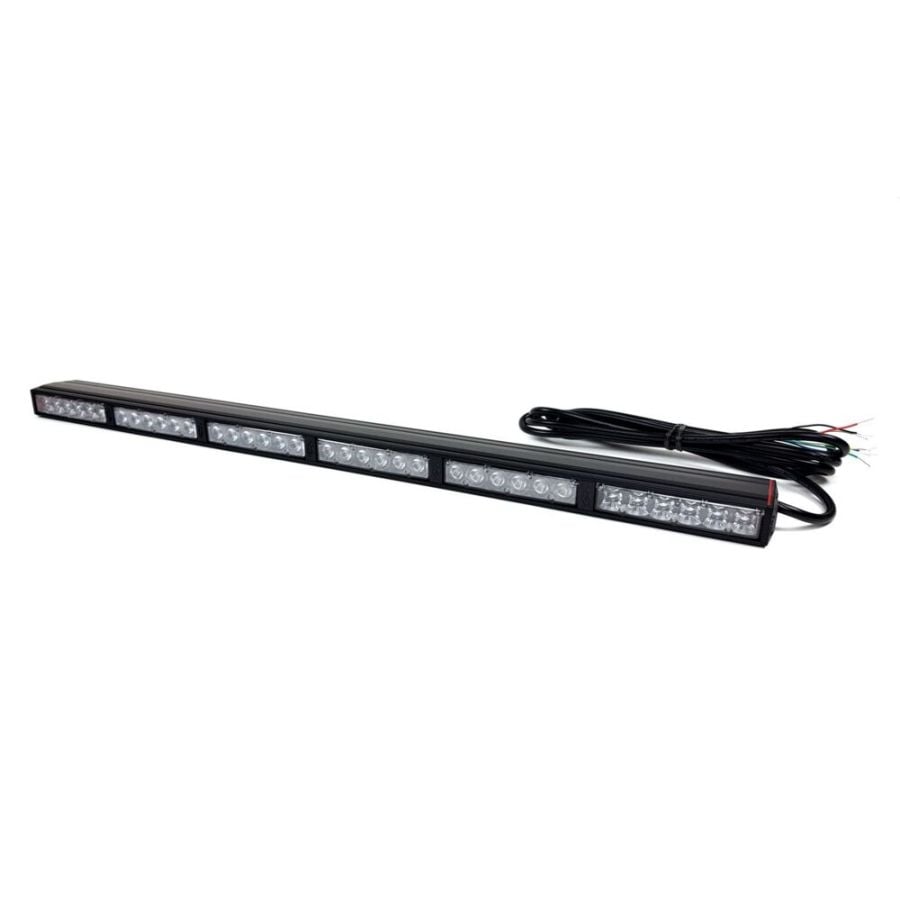

28" Chase LED Light Bar - Multi-Function - Rear Facing - for Can-Am Maverick X3 / R
28" Rear facing LED tail light bar dramatically improves rider safety featuring integrated tail and brake light, amber dust light (strobe capable), and white floodlight for versatile functionality on your Can-Am Maverick X3 and Maverick R UTV.
** Note: The Rear Chase Light Bar now ships with base functionality only. The Control Module (#9804R) is sold separately for advanced control and expanded features.
FEATURES
- 28" Rear Facing LED Light Bar
- Multi Function Integration and Design:
- Red LED Tail & Brake Lights with Blinker Capability
- Amber LED Dust Lights with Strobe Capability
- White LED Flood Lights
- Lightweight Extruded Aluminum Housing for Maximum Heat Dissipation and Durability
- Weather Resistant Enclosure and Shatter-Proof Polycarbonate Lens for Maximum Durability
- 40° Spread and 180° Flood Beam Optics
SPECIFICATIONS
- LED Source: 4W Cree LED
- Raw Lumens: 4,500 lm
- LED Color: Red, Amber, and Clear LEDs
- Amp Draw: 5.0A (max draw)
- Voltage: 12V DC
- Certifications: SAE J595, CT13, SAE J1119
- Product Dimensions: H - 1.22" x L - 28.14" x W- 2.25"
PARTS INCLUDED
- (1) 28" Rear Facing LED Light Bar with Wire Lead
MULTI-FUNCTIONAL USE FOR STREET OR COMPETITIVE RACING
28" Multi-function rear facing LED tail light bar has been exclusively configured for use on UTVs, Jeeps, Truck racks, Race trucks or even custom applications. Enhanced features include red tail/brake light with blinker capability, amber dust lights with solid or strobe capability and white flood/work lights for area lighting.
The use of a rear facing LED tail light bar dramatically improves rider safety on the trail or off-roading through desert terrains for recreational and competitive race course use. This rear facing LED tail light bar also is equipped with standard functions to comply with street legal standards, perfect for use on your Jeep, Car, Truck and UTV (If permitted for street use).
MOUNTING OPTIONS
Featuring a full length adjustable bolt slot located on rear section of light bar or threaded end mounts for use with bolted or welded on vehicle mounting tabs.
Optional Mounting L-Brackets Available - KC #9800
IMPORTANT: This bar is not compatible with aftermarket turn signals
| SKU | 98011 |
|---|---|
| Weight | 4.500000 |
| Light Technology | LED |
| Mount Location | Rear / Back-up |
| Beam Pattern | Combo |
| Color | Black |
| LED Color | White |
| Lens Color | Clear |
| Wattage Per Light | 60W |
| Total Wattage | 60W |
| Amp Draw Per Light | 5.0a |
| Total Amp Draw | 5.0a |
| Voltage | 13 V |
| Lumens Per Light | 4,500 lm |
| Total Lumens | 4,500 lm |
| Product Finish | Black |
| Size of Products | 28" |
| UPC | 084709980115 |
