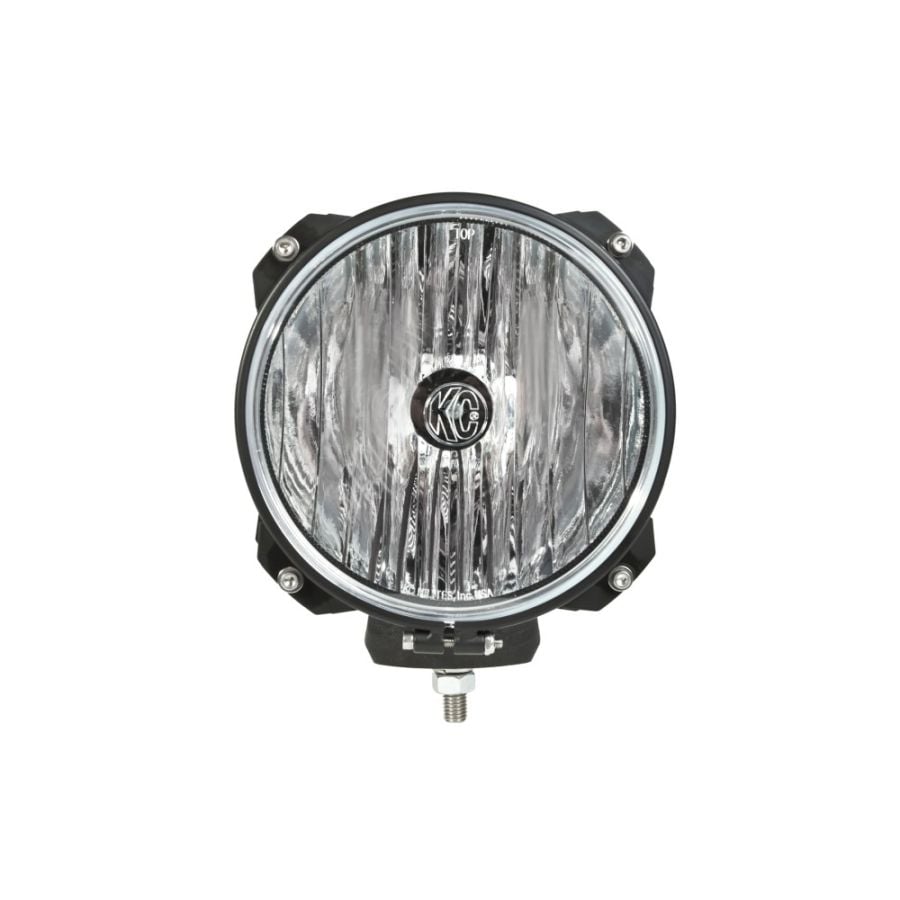

Carbon POD® 70W HID Single Light

Carbon POD® 70W HID Single Light 0 0

Starting From

In stock

$499.99

$399.99

Select Options* Required Fields

$499.99

$399.99

Overview

KC's Carbon POD® HID features powerful 70W HID ballasts with D1S HID bulbs in spot or spread beam. Dupont Zytel™ Carbon Fiber reinforced housing and Lexan lens with adjustable rally ring for precise aiming. Does not include Wiring

Details

FEATURES
-70W HID Bulb and Ballast
-DuPont™ Zytel® Carbon Fiber Housing
-Adjustable Rally Ring
-Spot or Spread Beam

LIGHT PERFORMANCE
-Raw Lumens: 7,000 lm
-Lux @ 10 meters: Spot- 11,600 lx, Spread- 5,300 lx
-Candela: Spot- 1,160,000 cd, Spread- 530,000 cd
-Beam Distance(meters): Spot- 1,976m, Spread- 1,406m

SPECIFICATIONS
-Wattage: 70W
-Bulb: Philips Xenon D1S HID
-Color Temperature: 4200K
-Amp Draw: 5.83A
-Voltage: 12V
-IP Rating: IP68
-Product Dimensions: W - 7.4" x H - 8.43" x D - 6.63"

PERFORMANCE HID AND PRECISION OPTICS
7" Carbon PODs deliver up to 11,600 lx @10m with a beam distance of 1,976 meters. Using solid state HID ballasts and HID bulbs with KC precision reflectors, KC's Carbon POD HID is one of the most usable, farthest reaching lights ever.



AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Lights produce a tight, focused circular beam pattern (often referred to as a pencil beam) that provides maximum forward distance for off-road use. Because the light pattern is generally very narrow, there is minimal peripheral lighting fill or side-to-side lighting. For this reason, Spot beam lights are best used in conjunction with other beam patterns to provide additional width and illuminating areas closer to the vehicle for a more complete beam coverage.
Spread Beam- Spread beam lights provide a wider area of coverage than spot beam lights. Although they provide considerable forward distance they are not as focused as spot beam lights, providing more peripheral lighting and width.

ADJUSTABLE RALLY RING FOR ACCURACY AND PRECISION
Carbon PODs use an adjustable Rally Ring system to provide easy and precise light adjustment for specific lighting needs. Initially designed for off road race teams, KC Rally Rings deliver the most accurate light pattern possible.

BAJA 1000 TESTED DURABILITY
Constructed from an injection molded composite DuPont™ Zytel® housing with a secure mounting base and stainless steel mounting hardware, ensuring Carbon PODs are always securely fastened.

Available Part Numbers

• Carbon POD® 70W HID Spot Beam Single Light - KC #96426
• Carbon POD® 70W HID Spread Beam Single Light - KC #96427
