Gravity® LED G6 Optical Insert Pair Pack System

Starting From

In stock

$302.94

Select Options

$302.94

* Required Fields

Overview

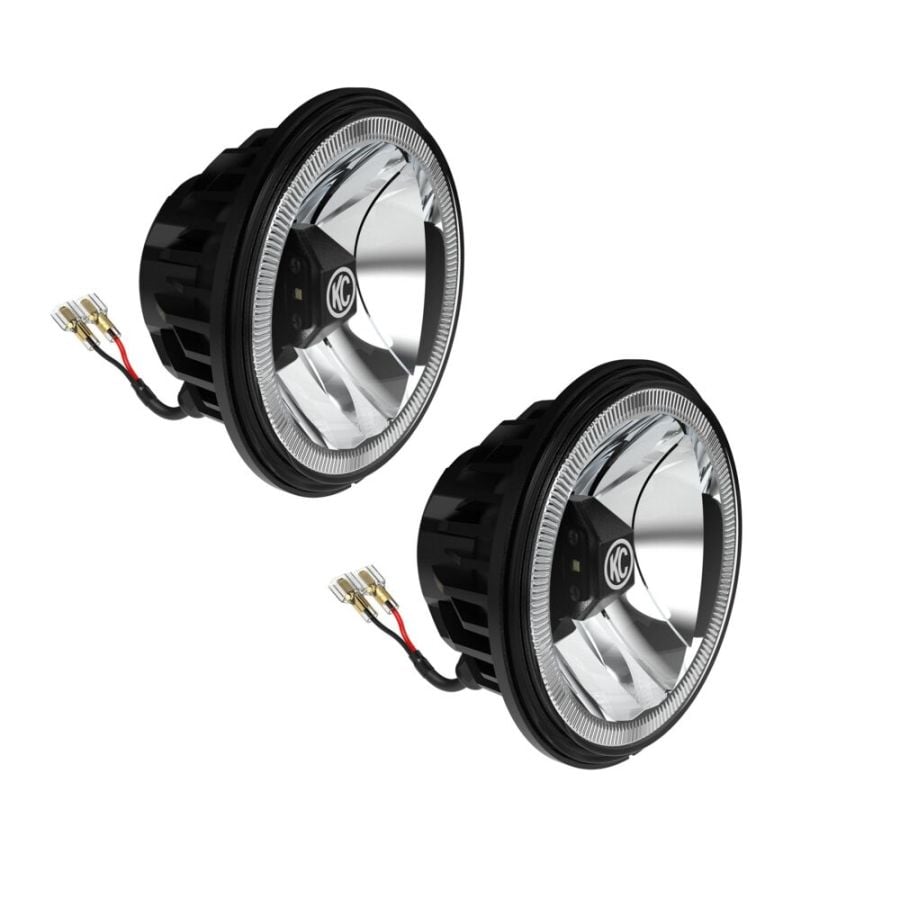

KC HiLiTES 6" Gravity® LED inserts feature efficient CREE LEDs in a spot, driving or wide-40 beam pattern, allowing you to easily upgrade existing Halogen 6" Daylighter and Pro-Sport lights. System includes (2) 6" 20w Gravity LED inserts.

Details

FEATURES
-2 x 20W Gravity® LED G6 optical inserts
-Aluminum Housing
-Hard Coated Polycarbonate Lens
-Spot, Driving or Wide-40 Beam

LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 2,300 lm
-Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
-Lux @10 Meters: Spot- 2,150 lx, Driving- 1,130 lx, Wide-40- 390 lx
-Candela: Spot- 215,000 cd, Driving- 131,000 cd, Wide-40- 39,000 cd
-Beam Distance (Meters): Spot- 972m, Driving- 724m, Wide-40- 395m

SPECIFICATIONS(PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"

Parts Included in G6 Pair Packs
-(2) 6" Gravity® G6 optical inserts
-Wiring Harness w/ 2-Pin weather proof connectors
-30 Amp Illuminated LED Switch w/Panel

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 2,150 lx @ 10m and beam distance of 972 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.

Driving Beam- Greatly improve peripheral lighting with a wider beam pattern for increased road coverage while reducing glare.
Wide-40- Provides a wider and higher beam spread compared to our street legal Fog Beam patterns, while improving forward beam distance.

UPGRADE YOUR HALOGENS TO LED
KC's Gravity® G6 LED optical inserts allow you to upgrade older KC 6" Halogen Daylighter and Pro-Sport housings, as well custom 6" openings with the latest LED technology.

STRENGTH & DURABILITY
With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self contained LED light for maximum reliability and durability.

Available Part Numbers
• Gravity® G6 LED Drop-in Pair Pack System - KC #42054 (Spread Beam)
• Gravity® G6 LED Drop-in Pair Pack System - KC #42134 (Spot Beam)
• Gravity® G6 LED Drop-in Pair Pack System - KC #42056 (Wide-40 Beam)

Details

FEATURES
-2 x 20W Gravity® LED G6 optical inserts
-Aluminum Housing
-Hard Coated Polycarbonate Lens
-Spot, Driving or Wide-40 Beam

LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 2,300 lm
-Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
-Lux @10 Meters: Spot- 2,150 lx, Driving- 1,130 lx, Wide-40- 390 lx
-Candela: Spot- 215,000 cd, Driving- 131,000 cd, Wide-40- 39,000 cd
-Beam Distance (Meters): Spot- 972m, Driving- 724m, Wide-40- 395m

SPECIFICATIONS(PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"

Parts Included in G6 Pair Packs
-(2) 6" Gravity® G6 optical inserts
-Wiring Harness w/ 2-Pin weather proof connectors
-30 Amp Illuminated LED Switch w/Panel

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 2,150 lx @ 10m and beam distance of 972 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.

Driving Beam- Greatly improve peripheral lighting with a wider beam pattern for increased road coverage while reducing glare.
Wide-40- Provides a wider and higher beam spread compared to our street legal Fog Beam patterns, while improving forward beam distance.

UPGRADE YOUR HALOGENS TO LED
KC's Gravity® G6 LED optical inserts allow you to upgrade older KC 6" Halogen Daylighter and Pro-Sport housings, as well custom 6" openings with the latest LED technology.

STRENGTH & DURABILITY
With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self contained LED light for maximum reliability and durability.

Available Part Numbers
• Gravity® G6 LED Drop-in Pair Pack System - KC #42054 (Spread Beam)
• Gravity® G6 LED Drop-in Pair Pack System - KC #42134 (Spot Beam)
• Gravity® G6 LED Drop-in Pair Pack System - KC #42056 (Wide-40 Beam)
